Project Overview
A large water treatment enterprise needed reliable UV sterilizer units for inline water disinfection within its production cycle. The system required high throughput: up to 85 m³/h for one stream and 25 m³/h for another. The client emphasized a chemical-free process, continuous operation, and quick delivery times without modifications to existing piping.
Challenges
The customer’s priorities included:
- Bactericidal treatment of process water without using chemical reagents.
- Continuous inline UV disinfection without interrupting operations.
- High flow capacity and maximum ultraviolet efficiency.
- Minimal lead time for shipment and readiness for pick-up.
- Fully equipped systems that integrate easily and perform reliably without adjustments.
Proposed Solution
After analyzing the technical requirements, our team recommended:

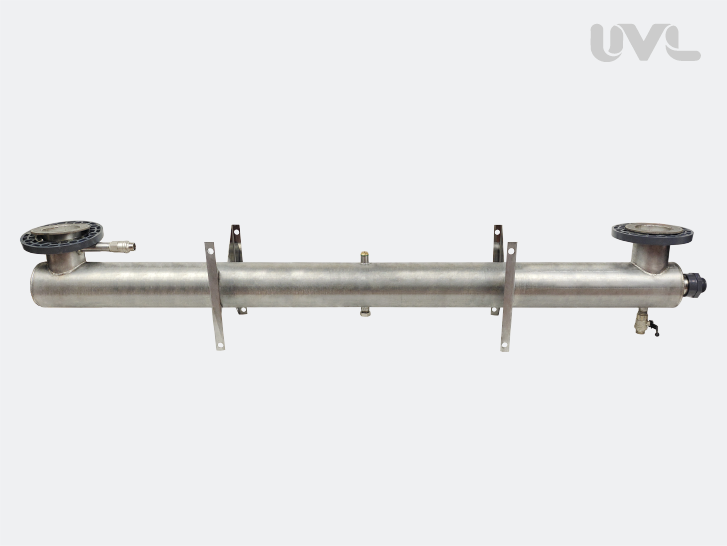

Four UVL Aqua 800 systems
- Capacity: up to 85 m³/h
- Stainless steel housing (AISI 304)
- 100 mm flange connection
- UV lamp UVL 32800
- Electronic ballast L-220-1x(500–800)-2212-170
- Dimensions: 2100 × 300 × 400 mm
- Weight: approx. 20 kg

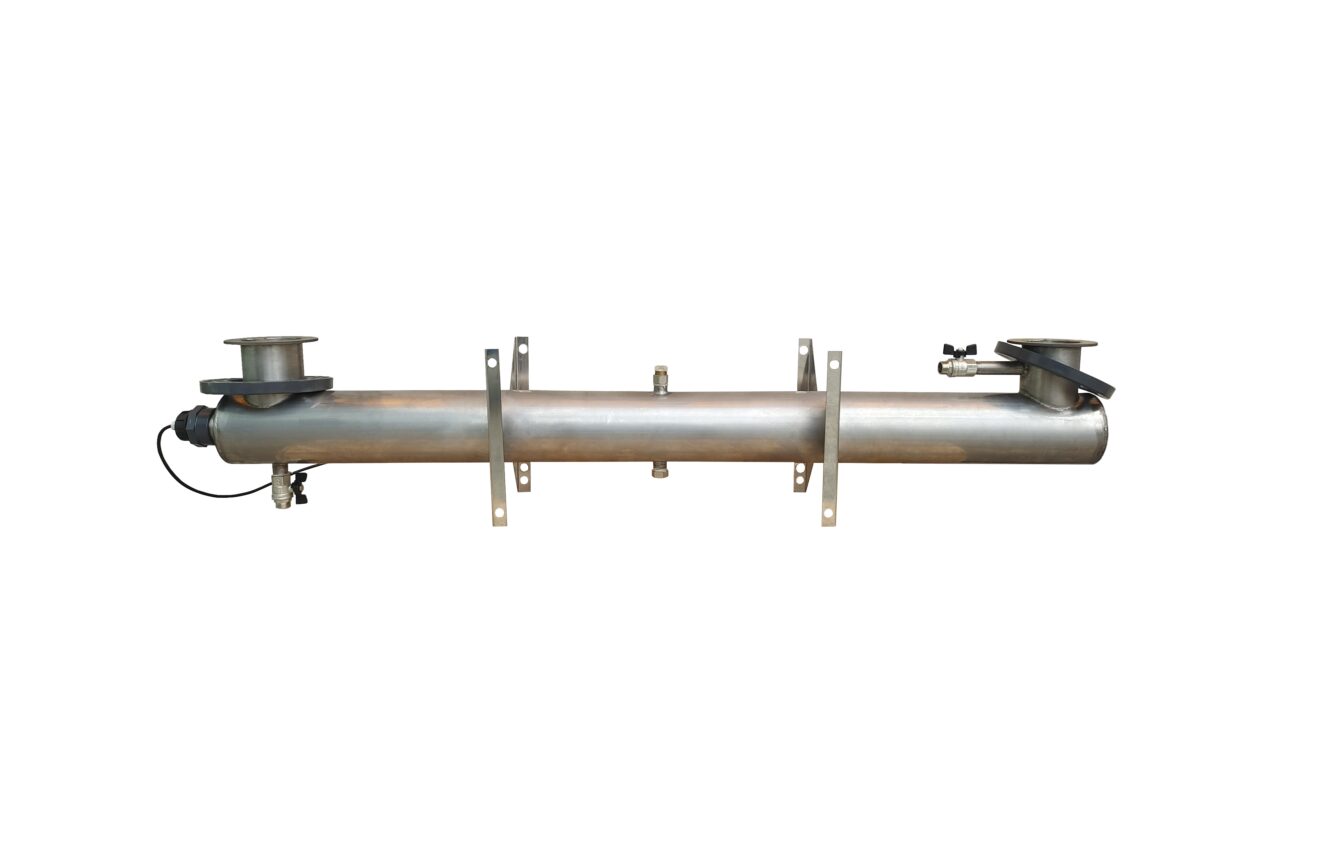

One UVL Aqua 320 system
- Capacity: up to 25 m³/h
- Stainless steel housing (AISI 304)
- 80 mm flange connection
- UV lamp UVL 19320
- Electronic ballast L-220-1x320-2212-150
- Compact industrial configuration for limited spaces
These UV disinfection systems for water feature a U-shaped configuration for easier installation and maintenance. The design allows seamless integration into existing pipeline systems and minimizes downtime.
Implementation Process
The project included:
- Detailed consultations and approval of the commercial proposal.
- Fast assembly, packing, and preparation for pick-up within agreed timelines.
- Complete documentation package, including technical passports and operation manuals.
- Quick resolution of a quartz sleeve installation issue: clear assembly instructions were provided, and a replacement was offered if needed.
Results for the Client
By adopting these UV disinfection systems, the customer gained:
- Reliable water sterilization without chemicals, ensuring compliance with water quality standards.
- 12-month warranty on all germicidal UV lamps.
- Durability under up to 2,000 on/off cycles.
- Full supply package—from quartz sleeves to electronic ballasts and connectors.
- On-time delivery and professional support throughout the project.
Contact us if you need efficient ultraviolet water disinfection systems for industrial applications or water treatment facilities.
